Edge Lit vs Backlit LED Panels: A Complete Commercial Lighting Guide

LED lighting is also well known as an energy-efficient and beautiful lighting source. Hence, it is a sensible option for commercial usage.

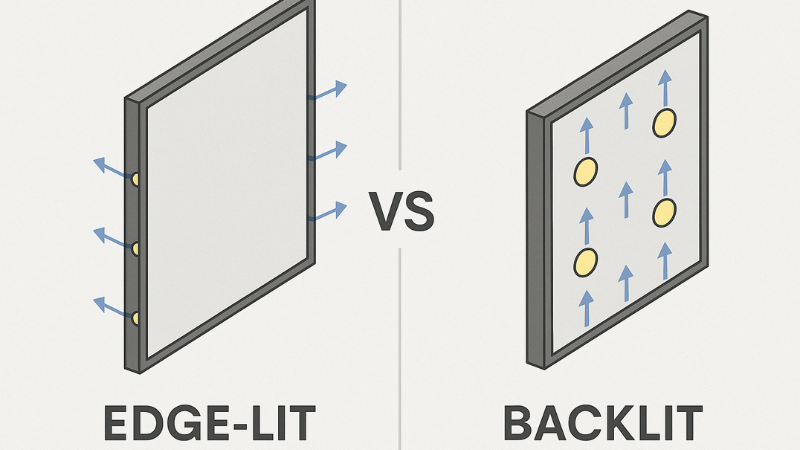

The two most famous ones—edge-lit and backlit—are differentiated on the basis of their LED locations. Awareness of the difference between these two helps companies choose the most efficient and effective one.

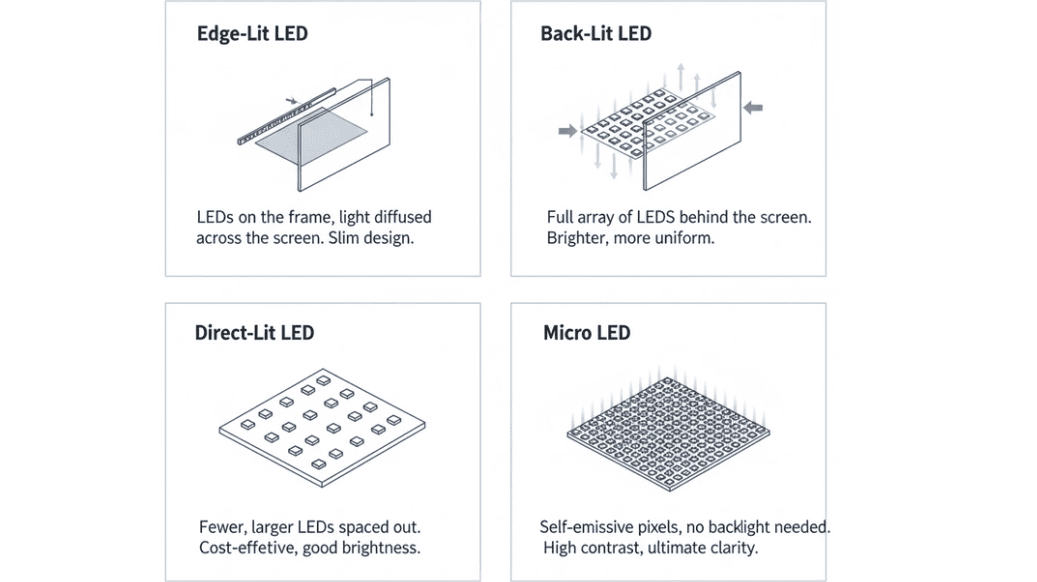

Types of LED Display Technology

Working with LED displays requires a complete understanding of LED bulbs so businesses can pick an effective solution that will fulfill their room and performance needs. Below are the most widely used types:

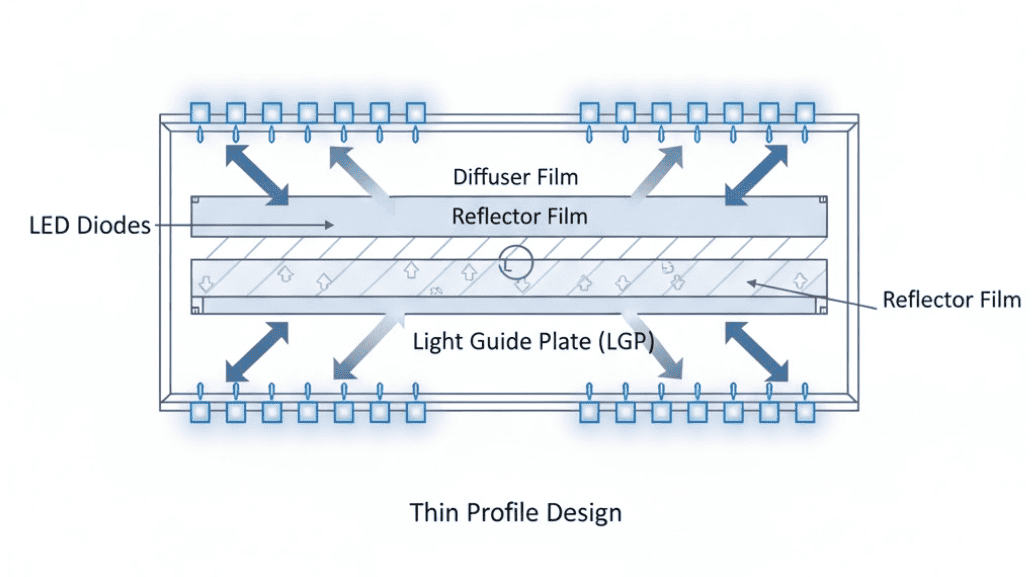

Edge-Lit LED

Edge-lit LED screens position LEDs along the edges of the screen. A light guide panel distributes light over the screen. It assists in delivering ultra-thin screens and lower energy consumption, but it may lead to non-uniform brightness.

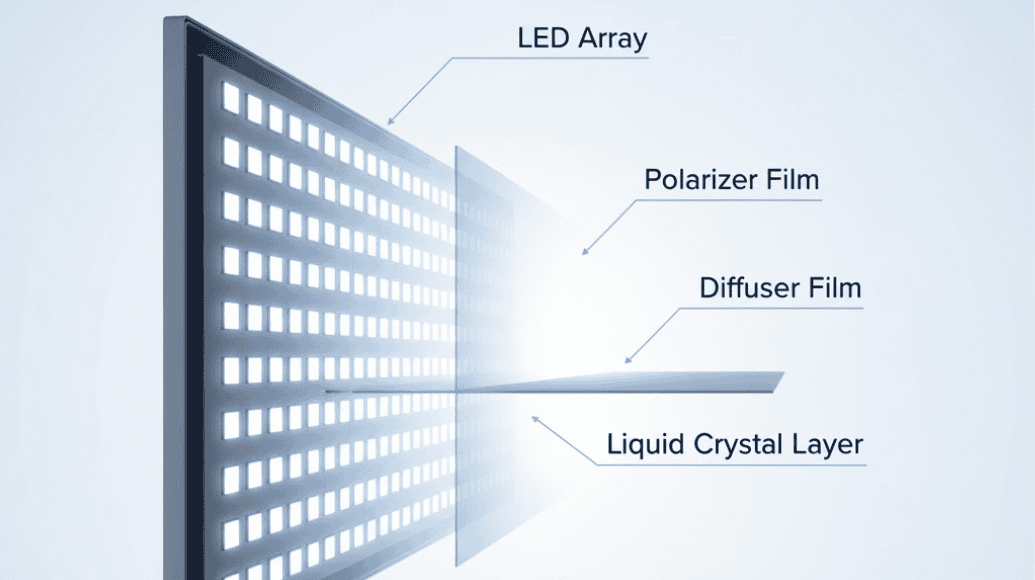

Backlit LED

Backlit LED monitors place LEDs behind the screen, providing brighter and more even lighting and better overall image quality. This design makes it easier to see and is ideal for uses where even illumination is needed.

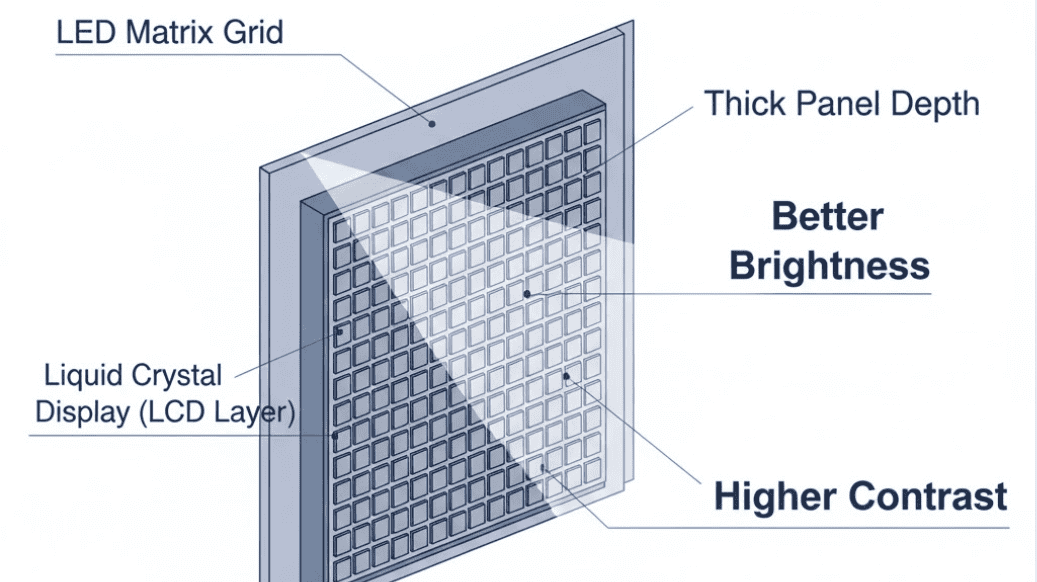

Direct-Lit LED

Direct-lit technology places LEDs in front of the LCD panel and does not employ a light guide. Even though the screens end up thicker, they offer better brightness and contrast.

They are best suited for locations where high-performance monitors are needed. Another type is indirect light. So choose wisely between direct or indirect lighting.

Micro LED

Micro LED screens use millions of individual LEDs to create one pixel. They offer superior luminance uniformity due to their exceptionally high color accuracy, brightness, and efficiency.

Micro LEDs are the pinnacle of LED technology, but they are currently more expensive and less common.

Edge-Lit LED’s Main Features

Edge-lit LED technology focuses on miniaturization and efficiency. LED pros and cons are really important to consider:

Energy Efficiency: Edge-lit panels consume less power and, therefore, are more expensive in the long term with regard to energy expenditures.

Slim Profile: LEDs are mounted at the edges to produce ultra-slim and lightweight designs—ideal for wall mounting or space-saving installation.

Great Picture Quality: Even though edge-lit panels provide good picture quality, even lighting or contrast is compromised in bigger sizes.

Cost-Effective: Due to their simpler building and reduced power usage, edge-lit LEDs are utilized in consumer-level TVs, monitors, and business usage where cost is a critical factor.

Backlit LED Features

Backlit LED technology is centered around image quality and consistency, providing a premium solution for display needs:

Bulkier Build: Backlighting tends to require a thicker panel, which isn’t always preferred for all applications.

Increased Cost: The extra features and performance benefits make backlit LED panels more expensive than their edge-lit counterparts, which are often lower priced.

Premium Picture Quality: LEDs spread out across the entire panel offer improved brightness consistency, contrast, and color accuracy.

High-End Applications: Typically applied in high-end commercial displays, signage, and professional monitors where image quality is a concern.

Edge-Lit Vs Back-Lit Panel Comparison

Cost Analysis: 10-Year Ownership Costs

In the case of long-term lighting solutions, the initial cost is merely a percentage of the total cost. Maintenance, replacement, and power consumption over the years are all critical considerations in determining the most cost-effective solution.

This case study demonstrates the comparison of the 10-year cost of 100 lighting panels for two traditional solutions: Edge-Lit panels and Low-Quality Back-Lit panels.

Case Study Breakdown

Cheap back-lit panels can appear to be cost-cutting in the short run but are costly in the long run because they consume more energy and require more maintenance due to higher thermal resistance.

Increased investment in more sophisticated Edge-Lit panels translates to huge savings over a period of 10 years.

Red Flags: Steer Clear of Cheap Panels

Choosing the wrong lighting panels leads to rapid performance decline, more maintenance, and early replacement—causing much more cost and disruption.

A simple procurement guide checklist below outlines typical pitfalls with Edge-Lit and Back-Lit panels and how to order to provide future-proof reliability.

Procurement Checklist

Edge-Lit Panel Pitfalls

• PS LGP Without UV Stabilizers: PS light guide plates without UV protection turn yellow after only 2 years, cutting light output and appearance.

• Low Frame Heat Dissipation: Insufficient thermal design encourages LED wear, causing 30% more lumen depreciation and affecting brightness and efficiency.

Back-Lit Panel Pitfalls

Back-lit panels are susceptible to a variety of pitfalls with no useful front panel or diffuser.

• Less than 36 LEDs per Panel: More LEDs limit the designer’s choices, requiring chip overdriving, which drastically degrades life and encourages premature failure.

• Plastic Backplates: Replacing plastic with aluminum compromises heat management, usually by raising chip temperatures radically above 85°C, considerably beyond recommended safe operating limits.

To protect your investment and for the panels to last long, search for the top LED manufacturer in the USA and quote the following at purchase:

• Material Certifications (e.g., PMLA)
• Thermal Test Reports by Accredited Laboratories

These reports ensure that the panels meet essential durability and safety standards—essential to long-term performance.

Selecting the Appropriate LED Lighting for Your Application

LED lights are the future of the lighting industry. When choosing LED lighting, your selection must be appropriate for the desired application and picture quality.

Brightness and clarity are paramount on displays like monitors or televisions, but energy consumption and cost in the long term are concerns for commercial and home usage.

Slimmer, more streamlined LED options are gaining increasingly wide appeal due to their slender thickness and space-conversion benefits, especially suited for modern interior decor or compact installations.

It’s also worth doing thorough research—reading technical specs and product reviews—to ensure that the LED solution you choose meets performance and budget needs.

Cost-Effective LED Lighting Solutions

Edge-lit LED panels offer good value for businesses that require an affordable but effective commercial lighting solution, particularly in screens like television sets and computer monitors. To be even more attractive, LED modules can reduce power consumption without reducing luminance.

New technologies such as local dimming enable minute brightness level control, enhancing image depth and contrast without an increase in energy consumption.

Moreover, employing panels with multiple zones and additional LEDs can significantly improve image quality and save money, providing sharper images without sacrificing energy savings in the long term.

FAQs

Which panel is ideal for 3m office ceilings?

Edge-lit panels are ideal. They offer excellent glare control with Unified Glare Rating (UGR) < 19, making them ideal for offices with typical ceiling heights of approximately 3 meters.

Can we include more than one type of panel in a single project?

Yes, you can mix panel types within a single project for functionality and economy. For instance, Utilize Back-Lit panels in warehouses or utility rooms where appearance is of lesser concern and glare control. Utilize Edge-Lit panels in classrooms, meeting rooms, or offices where visual comfort matters.

However, ensure that all panels are compatible with a shared control system(e.g., occupancy sensors, dimming) to avoid integration issues.

How do we verify UGR claims?

Demand third-party photometric test reports from suppliers that have been conducted to EN 12464-1 standards. They offer objective measures of glare performance and allow you to check for compliance and performance claims before purchase.

Conclusion

Choosing the best LED lighting compromises performance, efficiency, and cost. By bringing your specific application to life and exploring smart technologies like edge-lit panels and local dimming, you will achieve outstanding visual performance and bottom-line savings.
